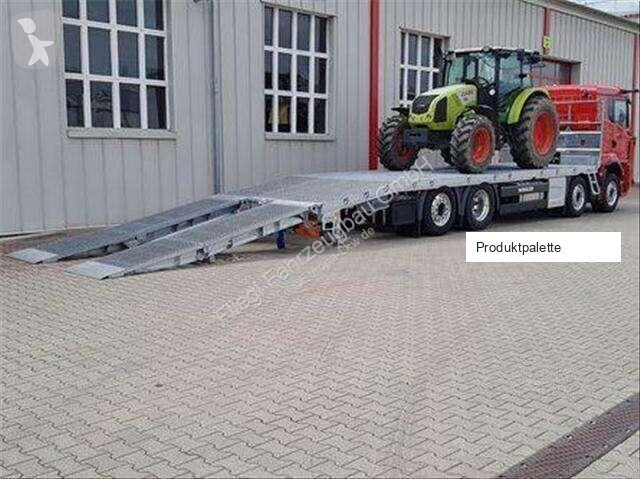

Camión portacoches lkw tieflade liftmaster aufbau für 4 achs lkw fahrgestell zum tr nuevo

Tarifa de venta :

Precio bajo pedido

Volver a buscar

Camión LKW Tieflade Liftmaster Aufbau für 4...

Ref: Produktpalette

Camión portacoches LKW Tieflade Liftmaster Aufbau für 4 Achs LKW Fahrgestell zum Tr nuevo

07819 Triptis
nc

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509030
Carrocería	Portacoches
Marca	--
Modelo	LKW Tieflade Liftmaster Aufbau für 4 Achs LKW Fahrgestell zum Tr
Estado	Nuevo
Fecha 1ª matriculación
País	ALEMANIA

Neumáticos
Estado y dimensiones de los neumáticos	-

Características LKW Tieflade Liftmaster Aufba...
Kilometraje	0 km

Caja de cambios y transmisión
Precisiones caja de cambios	Boîte automatique

Comentarios
Localisation : • Allemagne Triptis Description: Interchangable body Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Tow hitch ball head D24.8: (height from floor to top edge approx. 480 mm), towing capacity 2,800 kg Radstand: 2nd axle 1,795 mm / 2nd to Additional information Frame Steel welded construction made of fine-grain steel hot-dip galvanized flat platform without edge rim slope of the loading area towards the rear axle by approx. 8° downwards. Longitudinal beams made of steel profiles steel frame hot-dip galvanized with NIRO sheet metal at the bend as a rope guide - flush with the floor. For trucks with 3rd axle 4,105 mm and 3rd to 4th axle 1,350 mm Tow hitch including mounting and electrical system with 7-pole socket Accessories/Modifications 2 holders for wheel chocks aluminum side underrun protection foldable - These are taken over from the truck! Steel underrun protection quarter-shell fenders with mud flaps - These are taken over from the truck! Storage box Plastic toolbox with drawer and insert w=650 / h=520 / d=670 mm can be locked with a padlock 1 holder for 3 pieces of gasoline canisters 1 stainless steel storage box w=600/h=400/d=500 mm with polished door including locking mechanism contains control valve and electro-hydraulic pump unit. Control box with all-round door seal and sealing sleeves on the back Electrical system Nwjc Tqek Unitomalrsk Adjustment of the existing tail lights 2 additional LED work lights recessed in the front wall switched via parking lights with switch on the front wall outside on the driver''s side 1 LED work light at the rear with integrated reversing camera including color flat-screen monitor screen with suction cup holder and power supply via 24 volts voltage divider 24/12V 1 7-pole 12V socket = adapter Floor Mega Grip made of interlocking galvanized grating steel grating 50/4 including with a mesh size of 50 mm. Top side with anti-slip interlocking continuously laid over the entire main frame platform Tie-down eyes 12 pairs of tie-down eyes in the outer frame freely pivotable - each 10 tons 1 at the very front and the last one at the very rear. 1 tie-down eye at the very rear in the middle for attaching the winch cable 12 tie-down eyes recessed in the center of the floor each 5 tons Front wall Front wall made of steel sheet height 1,500 mm. Fixed with corner pillars at the front wall height. Each 2 x 12 mounting brackets for lashing chains mounted on the left and right on the front wall Winch Electric winch 24 volts pulling force approx. 6,350 kg mounted in the center on the front wall (recessed with loading bridge) operated with a wireless remote control rope length min. 35 m x 9.5 mm with rope window with rope pressure plate including overload protection rope free-running clutch hand switch with approx. 5 m control lever acceptance of the winch civil engineer''s test report test book operating manual Ramps Length 3,500 mm - 2-piece (2,000 mm + 1,500 mm) width 850 mm load capacity 20,000 kg / pair (also when loading with ramps) electro-hydraulically foldable and laterally adjustable - including electro-hydraulic pump unit. Ramp angle approx. 8° with lowered rear axle Ramp surface made of steel grating hot-dip galvanized with anti-slip interlocking. Ramps can be slid together to approx. 170 mm ramp extension hydraulically. Ramp prepared for operation on a loading ramp with full load capacity Ramp locking with 2 tension straps Ramp tip offset for resting on loading ramps Labeling of the ramp operation Lowering brake valve for lowering the ramp Support Adjustable support le
Ver todo

Comentarios

Localisation :
• Allemagne Triptis

Description: Interchangable body
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Tow hitch ball head D24.8: (height from floor to top edge approx. 480 mm), towing capacity 2,800 kg
Radstand: 2nd axle 1,795 mm / 2nd to
Additional information
Frame
Steel welded construction made of fine-grain steel
hot-dip galvanized
flat platform without edge rim
slope of the loading area towards the rear axle by approx. 8° downwards. Longitudinal beams made of steel profiles
steel frame hot-dip galvanized
with NIRO sheet metal at the bend as a rope guide - flush with the floor. For trucks with
3rd axle 4,105 mm and 3rd to 4th axle 1,350 mm
Tow hitch
including mounting and electrical system with 7-pole socket
Accessories/Modifications
2 holders for wheel chocks
aluminum side underrun protection
foldable - These are taken over from the truck!
Steel underrun protection
quarter-shell fenders with mud flaps - These are
taken over from the truck!
Storage box
Plastic toolbox
with drawer and insert
w=650 / h=520 / d=670 mm
can be locked with a padlock
1 holder for 3 pieces of gasoline canisters
1 stainless steel storage box
w=600/h=400/d=500 mm
with polished door
including
locking mechanism
contains control valve and electro-hydraulic
pump unit. Control box with all-round door seal and
sealing sleeves on the back
Electrical system
Nwjc Tqek Unitomalrsk
Adjustment of the existing tail lights
2 additional LED work lights
recessed in the front wall
switched via parking lights with switch on the front wall outside on the driver''s side
1 LED work light
at the rear
with integrated reversing camera including
color flat-screen monitor
screen with suction cup holder and power supply via 24 volts
voltage divider 24/12V
1 7-pole 12V socket = adapter
Floor
Mega Grip made of interlocking galvanized grating
steel grating 50/4 including
with a mesh size of 50 mm. Top side with anti-slip interlocking
continuously laid over the entire main frame platform
Tie-down eyes
12 pairs of tie-down eyes in the outer frame
freely pivotable - each 10 tons
1 at the very front and the last one at the very rear. 1 tie-down eye at the very rear in the middle for attaching the
winch cable
12 tie-down eyes recessed in the center of the floor
each 5 tons

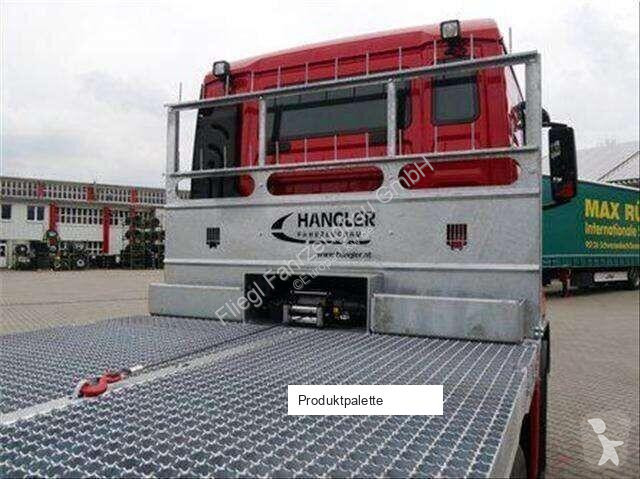

Front wall
Front wall made of steel sheet
height 1,500 mm. Fixed with corner pillars at the front wall height. Each 2
x 12 mounting brackets for lashing chains mounted on the left and right on the front wall

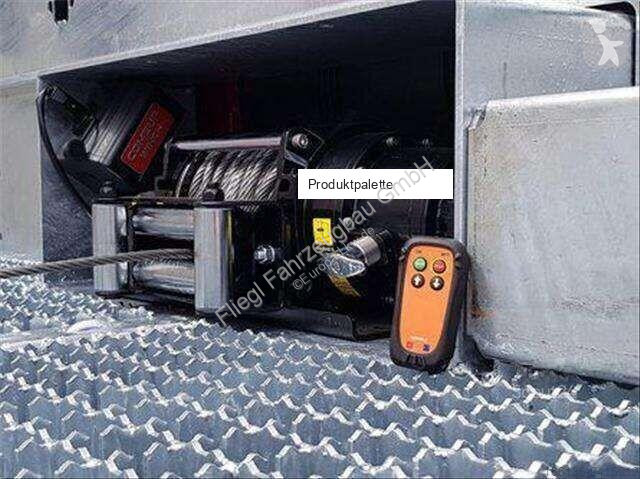

Winch
Electric winch
24 volts
pulling force approx. 6,350 kg
mounted in the center on the front wall (recessed with
loading bridge)
operated with a wireless remote control
rope length min. 35 m x 9.5 mm
with rope window
with rope pressure plate
including overload protection
rope free-running clutch
hand switch with approx. 5 m
control lever
acceptance of the winch
civil engineer''s test report
test book
operating manual

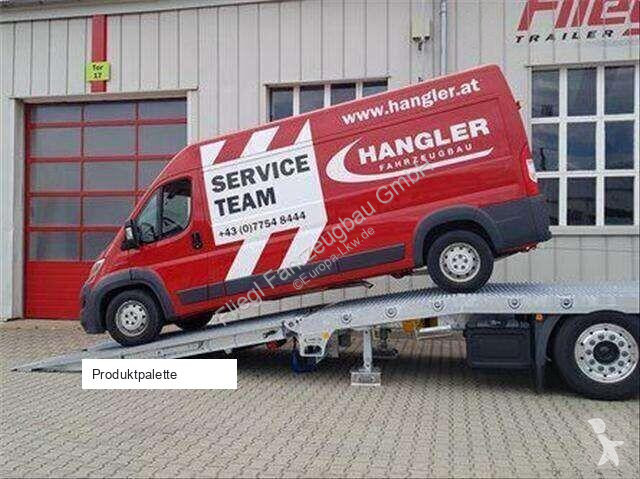

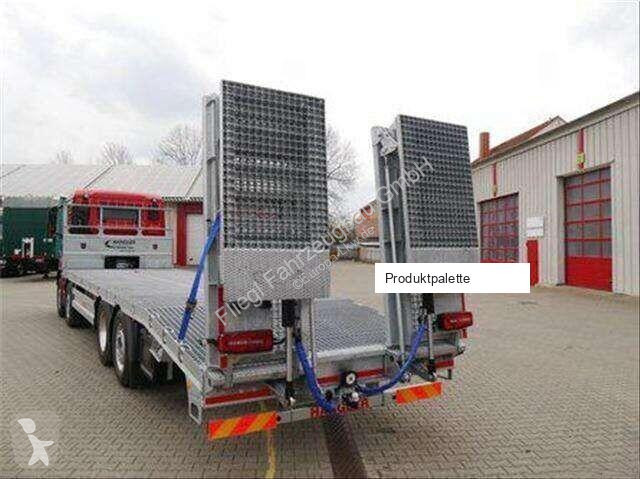

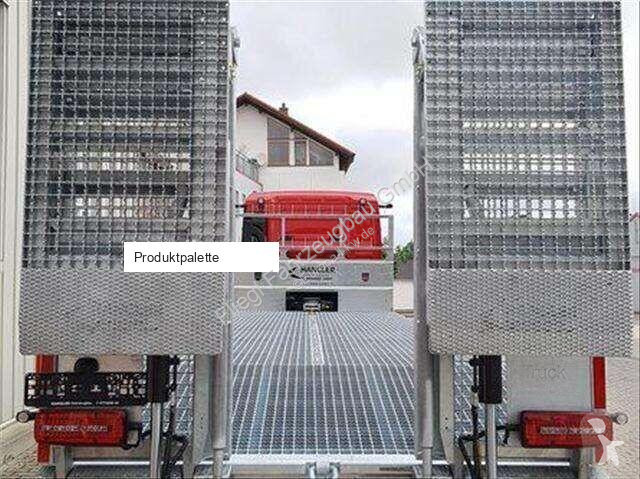

Ramps
Length 3,500 mm - 2-piece (2,000 mm + 1,500 mm)
width 850 mm
load capacity 20,000 kg / pair (also
when loading with ramps)
electro-hydraulically foldable and laterally adjustable - including
electro-hydraulic pump unit. Ramp angle approx. 8° with lowered rear axle
Ramp surface made of steel grating
hot-dip galvanized
with
anti-slip interlocking. Ramps can be slid together to approx. 170 mm
ramp extension hydraulically. Ramp prepared for operation on a loading ramp with full load capacity
Ramp locking with 2 tension straps
Ramp tip offset for resting on loading ramps
Labeling of the ramp operation
Lowering brake valve for lowering the ramp
Support
Adjustable support le
